- From 45 up to 2700A
- Max. voltage 480V or 600V & 690V AC as an option
- Load type: Inductive Load, Transformer and MoSi2 element.
- Inputs: SSR, 0:10V, 4:20mA, 10KPot and Communication Std.
- Firing mode: Burst Firing, Delay Triggering + Burst Firing, Phase Angle + Soft Start
- Current Limit is available with Phase Angle Firing
- N°4 Retransmission are available plus IO

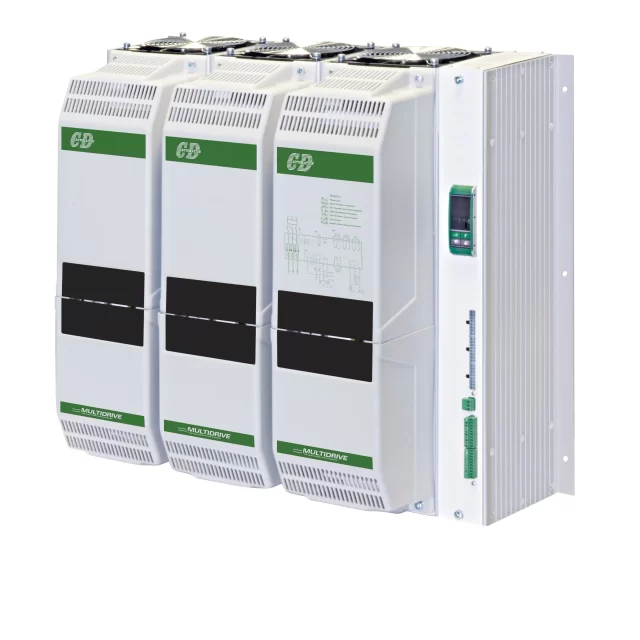

Multidrive 3PH Thyristor Power Controller
- Suitable for normal resistance & transformer coupled with normal resistive loads
- Thyristors for resistive, inductive & transformer loads
- Current range – 35A, 45A, 75A, 100A, 125A, 225A, 300A, 350A, 400A, 450A, 500A, 600A, 850A, 1000A, 1400A, 1500A, 1850A, 2000A, 2400A, 2700A
- Supply voltage up to 480V as standard, 600V & 690V available as option (690V not available on 1000A, 1500A, 2000A & 2700A units)
- Microprocessor based electronic circuit fully isolated from the power
- Firing types include Burst Firing (BF), Single Cycle (SC), Soft Start + Burst Firing (S+BF), Delayed Triggering + Burst Firing (DT+BF), Phase Angle (PA), Soft Start + Phase Angle (S+PA).
- Input signals from 4-20mA, 0-10V DC Linear input, 10K Pot or RS485 comms
- Selectable control modes include V, I, VxI, V2
- Current limit as standard including internal current transformer, fully adjustable via front panel keypad
- Profiling of current limit via analogue input
- Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication.
- 4 configurable Analogue outputs, 4 Relay outputs and 6 Digital inputs as standard
- Internal quick-blow fuses as standard
- RS485 comms (Modbus Protocol) as standard
- Critical Alarms monitor phase loss, rotation and provide Thermal Protection
- Special design Heatsink with high dissipation value
- IP20 protection, cUL us is available as an option.
| Name | Size | Date |
|---|
| ENG L M CD Multidrive-3PH 1000A USER'S MANUAL MULTIDRIVE-3PH Thyristor Unit 1000A (English Version) |
2.9 MiB 14 July 2015 |
| ENG L M CD Multidrive-3PH 2000A USER’S MANUAL MULTIDRIVE-3PH Thyristor Unit 2000A (English Version) |
3.0 MiB 4 June 2014 |
| ENG L M CD Multidrive-3PH 35-850A USER’S MANUAL MULTIDRIVE-3PH Thyristor Unit from 35A to 850A (English Version) |
3.4 MiB 4 June 2014 |
| ENG L M CD Multidrive-3PH 1100-2100A USER'S MANUAL MULTIDRIVE-3PH Thyristor Unit 1100A - 1400A - 1700A - 1900A - 2100A (English Version) |
3.7 MiB 2 May 2016 |
| FRA L M CD Multidrive-3PH 25-850A MANUEL D’UTILISATION MULTIDRIVE-3PH UNITE DE PUISSANCE A THYRISTOR de 25A à 850A (Version Française) |
3.9 MiB 4 June 2014 |
| GER L M CD Multidrive-3PH 25-850A Bediener Handbuch MULTIDRIVE-3PH Thyristorsteller von 25A - 850A (Deutsch Version) |
3.2 MiB 14 July 2015 |
| ITA L M CD Multidrive-3PH 25-850A MANUALE D’USO MULTIDRIVE-3PH Unita’ a Thyristor Da 35A a 850A (Versione Italiano) |
3.3 MiB 4 June 2014 |
| Name | Size | Date |
|---|
| Serial Communication CD3000E-REVOE USER'S MANUAL CD3000 E - REVO E Serial Communication (English Version) |
1.2 MiB 17 July 2015 |
| Serial Communication Multidrive MULTIDRIVE Serial MODBUS Communication Manual (English Version) |
1.2 MiB 7 October 2014 |
| Serial Communication REVO-CL REVO CL Serial MODBUS Communication Manual (English Version) |
1.1 MiB 7 October 2014 |
| Serial Communication REVO-M REVO M Serial MODBUS Communication Manual (English Version) |
1.2 MiB 7 October 2014 |
| Name | Size | Date |
|---|
| ENG L V CD MULTIDRIVE-3PH DATASHEET MULTIDRIVE-3PH Universal 3 Phase Thyristor unit up to 500A (English Version) |
1.4 MiB 4 June 2014 |
| ENG L V CD MULTIDRIVE-HIGH-POWER-STACK-3PH DATASHEET MULTIDRIVE 3 Phase Thyristor unit from 1000 to 2600A (English Version) |
336.1 KiB 4 June 2014 |
| FRA L M CD MULTIDRIVE-3PH MANUEL D’UTILISATION MULTIDRIVE-3PH UNITE DE PUISSANCE A THYRISTOR de 25A à 500A (Version Française) |
3.3 MiB 4 June 2014 |
| ITA L V CD MULTIDRIVE-3PH DATASHEET MULTIDRIVE-3PH Unità a thyristor trifase universale fino a 500A (Versione Italiano) |
1.4 MiB 4 June 2014 |
| ITA L V CD MULTIDRIVE-HIGH-POWER-STACK-3PH DATASHEET MULTIDRIVE Unità a thyristor trifase da 1100 a 2600A (English Version) |
172.8 KiB 4 June 2014 |
| ThyristorConfigurator V5.6.4.14 Thyristor configurator sofware |
22.8 MiB 26 May 2016 |
| Driver-USB-for-programming-cable CCA Cable for unit configuration need a driver to be used on Windows PC. This is the executable version to install automatically the driver into the PC system. |
2.0 MiB 6 May 2016 |
| Driver-USB-for-programming-cable CCA Cable for unit configuration need a driver to be used on Windows PC. This is the zipped version of ini file. |
1.3 MiB 6 May 2016 |
| TestModbus CD3000M / CD3200 Software Testing Kit for Modbus communication. To connect the unit at the PC, it's necessary use the programming cable connected between the PG connector and the serial port RS232 of the PC. The programming cable is not included. |
1.0 MiB 4 June 2014 |
-
- Size S13/S14 – H 440/520 x W 262 x D 270 – 18 Kg.
-
- Size S15 – H 520 x W 400 x D 270 – 43 Kg. Current Range 850A
-
- Size SR20 – H 640 x W 523 x D 347 – 59/75 Kg. Current Range 1100-1400A
-
- Size SR23 – H 640 x W 717 x D 347 – 86/110 Kg. Current Range 1700-2700A
CD KP Operating terminals for Thyristor Units
- Operating terminals for Thyristor Units
- N°2 Display
- 48x96 Front Panel
- Re-Transmission
- Thyristor Configuration Port
- Multi Language Interface
- For CD3000M, CD3200, CD3000E and MULTIDRIVE.
REVO KP2
- Up to 6 zone can be managed
- 4.3, 7.0, 10” Colour Display
- Trend display
- Thyristor Configuration Recipy Management
- Multi Language Interface
- For REVO M, REVO CL, CD3000E and MULTIDRIVE.
TU-RS485-PB Profibus DP to Modbus RTU Converter
- Protocol Converter / Gateway from serial interface to PROFIBUS DP
- The PROTOCOL CONVERTER TU-RS485-PB connects devices such as thyristor units, controller and soft starter via their serial interfaces to Profibus DP. RS232, RS485 und RS422 interfaces are on Board as a standard feature.
TU-RS485-ETH-DL-IO Ethernet to Modbus Converter
- N.1 serial interface RS-485 Modbus RTU Master
- N.1 serial interface RS-485/232 Modbus RTU Slave
- USB Port with USB 8GB Memory Key for Data Logging
- Interface Ethernet 10Base-T, Modbus TCP
- N.4 Digital Inputs + N.2 SPDT Relays
- Functional Block programming software
CD-RS RS232 to RS485 RS422 Signal Converter 2500V Insulation
- Configurable communication
- RS485 or RS232RS232 front panel connector
- 2500V insulation between input and output
- Side by side mounting
- DIN rail mount or bulk head mounting
- Input and output data transfer LED indication
