Loop for Branch:30
Input: TC, RTD and Analog
Type:PID Hot / Cold
Logic Output:Yes
Relay output:Option
Analog Output:Yes
Communication:Modbus RTU
Approvals:CE / UKCA
Load:Electric / Gas
Logic Functions:No
Energy management:No
Integrated Power:No
Current Range:No
Load Diagnostic:Yes

General Details

COMPACT – Din Rail Controller

Single Loop Industrial Pid Controller



COMPACT is a single-loop back-of-board controller that can be connected to an operator panel, an industrial PC or a PLC. It can be used stand alone or in multi-zone systems.

    COMPACT presents:
  • Analogue process variable input, programmable for temperature sensors (resistance thermometers and thermocouples) and current and voltage signals.
  • Current monitoring is possible via TA input for current sensors.
  • Two logic outputs are configurable for single or double intervention PID control loops (hot/cold), alarm functions, open/close logic for valve control and soft-start for controlled power
  • Soft-start function allowing firing with controlled power.
  • An analogue output is also available for control or retransmission
  • ModbusRTU and CANOpen are the native communication protocols present on the models. Other fieldbuses are available via termination module

The control system meets the needs of various sectors: plastic extrusion, injection moulding, packaging, ovens, textile machines and multi-zone heat treatment plants in general


Code / Size

COMPACT – Order Code

COMPACT – Dimensions

SW / Comm

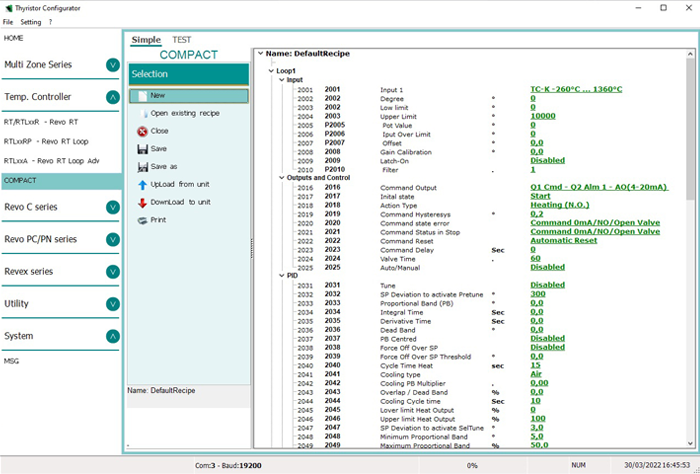

Free Configurator Software:
A standard Micro USB cable (our code is CCX) must be used to connect COMPACT to the computer.
The Windows driver for the USB connection is installed by the configuration software installer that can be downloaded here:

Thyristor Configurator Configurator Software REVEX 1/2/3PH, REVEX PA, REVO C 1/2/3PH, REVO PC v2, REVO PN v2, REVO PB, REVO RT/RTL, COMPACT, REVO TH





COMPACT – Documentation




ITA COMPACT ManualRegolatore di temperatura Compact. Manuale d’usoITA
Modulo portarele RIF 0 RPT 24DC1_ITAManuale Modulo Porta relè, ItalianoITA


ENG COMPACT manualCompact temperature controller. User ManualENG
Relay module RIF 0 RPT 24DC1_ENGRelay Module user manualENG
